High speed extrusion production line for PVC water supply and drainage pipes

All rights reserved:Established in 1982, TongDa Plastic Machinery Co., Ltd. Update time:2024-04-11 21:23:00

High speed extrusion production line for PVC water supply and drainage pipes
Product details

Main Technical Paramete:

Model

Pipe Dia.

(mm)

Output

(Kg/h)

MAX.Line Speed

(m/min)

Motor Power

(kw)

Line Lengt

(m)

75(B)

50-110

800

25

75

28

90(C)

110-200

1250

15

90

28

110(C)

110-400

1650

15

110

30

雙驅 75(B)

110-315

1400

15

75x2

28

65(A)

50-160

450-500

15

55

25

80(A)

200-630

700-800

8

90

28

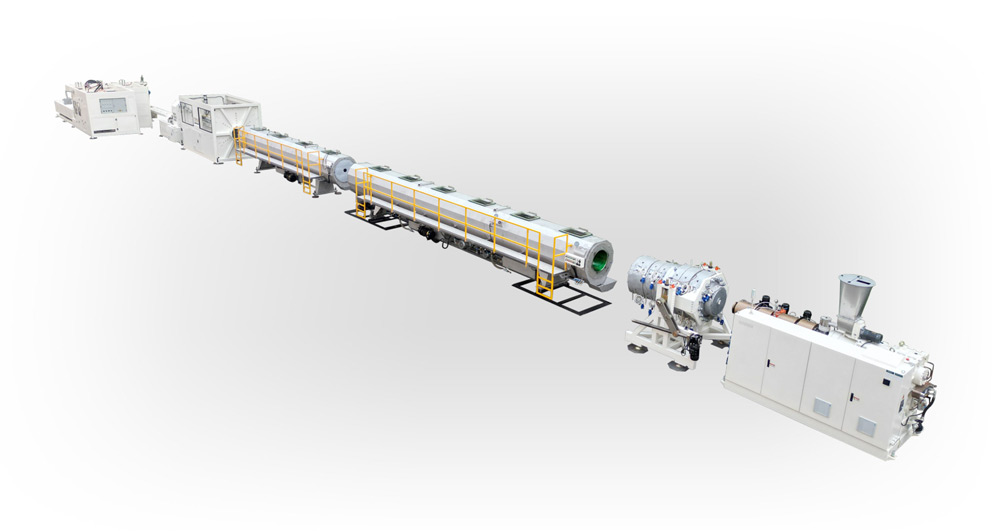

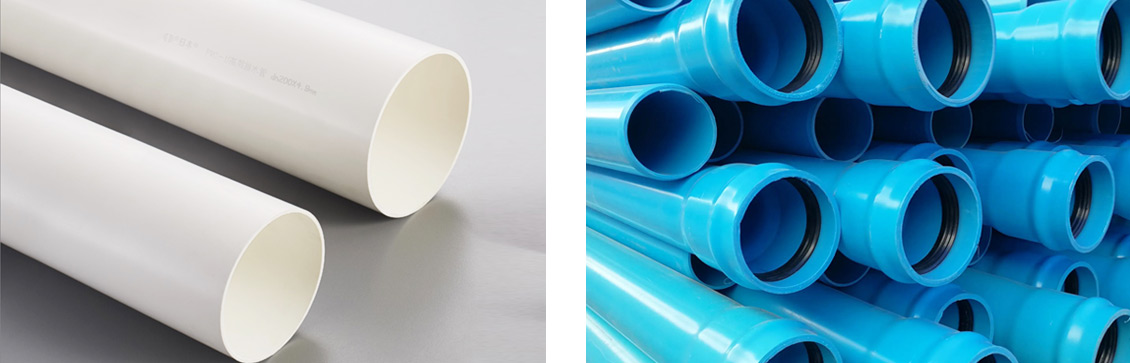

PVC pipe production line is mainly used to produce PVC pipes with all kinds of Diameter & thickness that are used for water supply and drainage as well as cable laying. This machine is made up of conical twin screw extruder, vacuum tank, HAUL-OFF machine, stacker etc.. The extruder and HAUL-OFF machine are controlled by imported AC variable frequency device. The vacuum pump and the motor of the HAUL-OFF machine are both of high quality. The ways of HAUL-OFF can be divided into 2-caterpillar, 3-caterpillar, 4-caterpillar, 6-caterpillar etc.. The way of cutting can be cutter lifting or planet cutting. The production line features reliable function and high efficiency. We can provide all kinds of dies according to customers’requirements.
